Tutorial: Data Science on Graphs with Neo4J

Genoveva Vargas-Solar
CNRS, LIG-LAFMIA, Grenoble
genoveva.vargas@imag.fr

Requirements

• Neo4J sandbox
• Game of Thrones dataset (included in the Neo4J sandbox)

Attribution

Tutorial partly based in the Neo4j Graph Data Science tutorial.

Creating a data science project

1. Access your Neo4J sandbox and choose to create a Graph Data Science project



2. Select Open with Browser

3. Click on the database icon to get Information about the Game of Thrones dataset



The graph contains :Person nodes, representing the characters, and :INTERACTS relationships, representing the characters’ interactions.

An interaction occurs each time two characters’ names (or nicknames) appear within 15 words of one another in the book text.

For more information about the data extraction process, see Network of Thrones, A Song of Math and Westeros, research by Dr. Andrew Beveridge.

The (:Person)-[:INTERACTS]→(:Person) graph is enriched with data on houses, battles, commanders, kings, knights, regions, locations, and deaths.

1. First steps on data science

The general workflow of a data science project starts with a quantitative and structural exploration of datasets. The objective is to understand the content and have an idea on the computing and memory resources required to process the dataset.

1.1 Exploring the dataset

Run the following query to visualize the schema of your graph:

CALL db.schema.visualization()

The :Dead, :King, and :Knight labels all appear on :Person nodes. You may find it useful to remove them from the visualization to make it easier to inspect.

1.2. Quantitative profile

The data science add-on of Neo4J does not provide a transparent management of main memory, so it is important to have a quantitative profile of the graph to process and use Neo4J tools to estimate the memory requirements and configure the system (e.g, tunning the heap size).

1.2.1 Statistics

Compute statistics to determine data distribution. For example, minimum, maximum, average and standard deviation of the number of interactions per character in the graph.

MATCH (c:Person)-[:INTERACTS]->()
WITH c, count(*) AS num
RETURN min(num) AS min, max(num) AS max, avg(num) AS avg_interactions, stdev(num) AS stdev

Calculate the same grouped by book:

MATCH (c:Person)-[r:INTERACTS]->()
WITH r.book as book, c, count(*) AS num
RETURN book, min(num) AS min, max(num) AS max, avg(num) AS avg_interactions, stdev(num) AS stdev
ORDER BY book

1.2.2 Allocating memory resources for processing graphs

Now it is necessary to estimate the memory required by the graph and the algorithms for processing it, for configuring Neo4J server with a larger heap than the one allocated for the transactional processing.

The graph algorithms of the data science add-on run on an in-memory heap allocated projection of the Neo4J graph. This means that before executing any algorithm you need to create implicitly or explicitly projections of a persistent graph in-memory. Processing graphs like this can have a significant memory footprint.

Therefore, it is necessary to estimate the amount of RAM required for a graph to be processed in order to configure the heap size before running a heavy memory workload.

Estimating memory usage for graphs

To estimate the required memory for a subset of your graph, for example, the Person nodes and INTERACTS relationships run the following:

CALL gds.graph.create.estimate('Person', 'INTERACTS')
YIELD nodeCount, relationshipCount, requiredMemory

The result shows that the example graph is small. So you can create a projected graph and name it got-interactions.

CALL gds.graph.create('got-interactions', 'Person', 'INTERACTS')

To estimate the memory needed to execute an algorithm on your got-interactions graph, for example, Page Rank, call the following procedure. The estimation only considers the algorithm execution, and the graph is already in-memory.

CALL gds.pageRank.stream.estimate('got-interactions')
YIELD requiredMemory

Estimating memory usage details

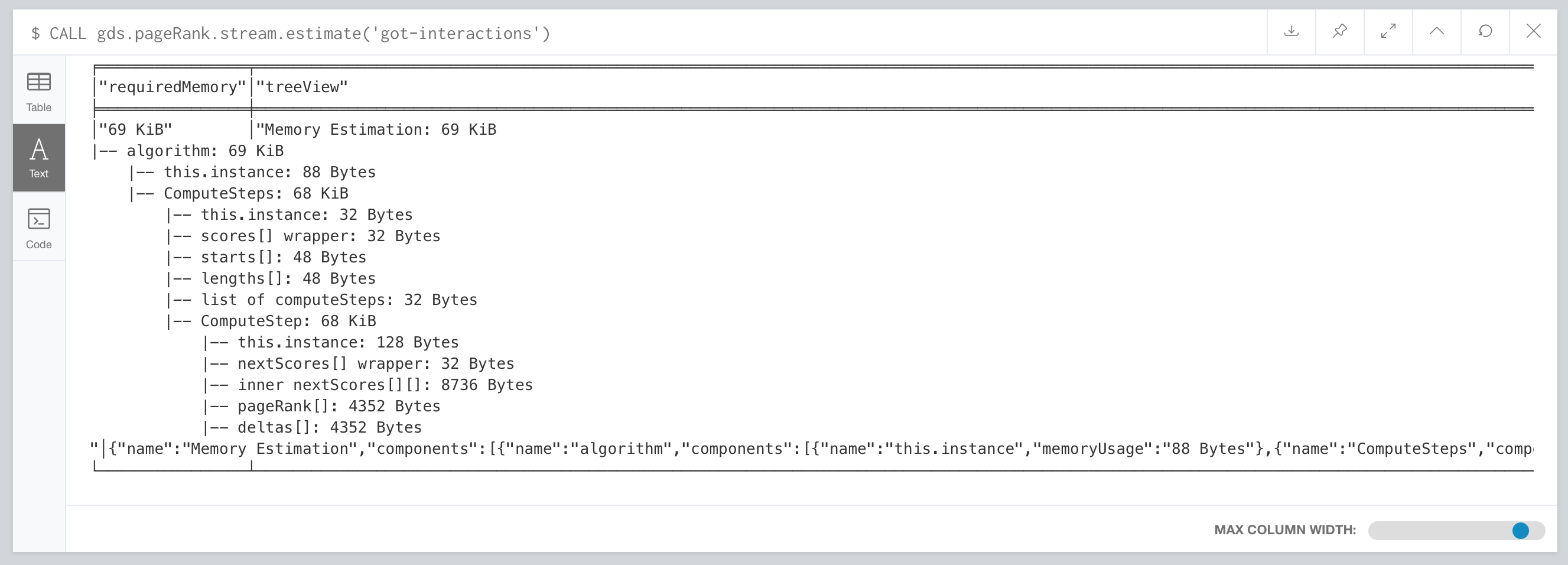

For looking at the full details of memory estimation, remove the YIELD clause. The procedure returns a tree view and a map view of all the “components” with their memory estimates. Note that the more detailed views contain estimates on the individual compute steps and the result data structures.

CALL gds.pageRank.stream.estimate('got-interactions')

Details about memory usage can be found here: https://neo4j.com/docs/graph-algorithms/current/projected-graph-model/memory-requirements/

You can also estimate the memory usage for graph creation and algorithm execution at the same time by using the so-called implicit graph creation. This way, the configuration for the graph creation is in-lined within the algorithm procedure call. The result shows an increased memory estimate, explained by the memory consumed by graph creation.

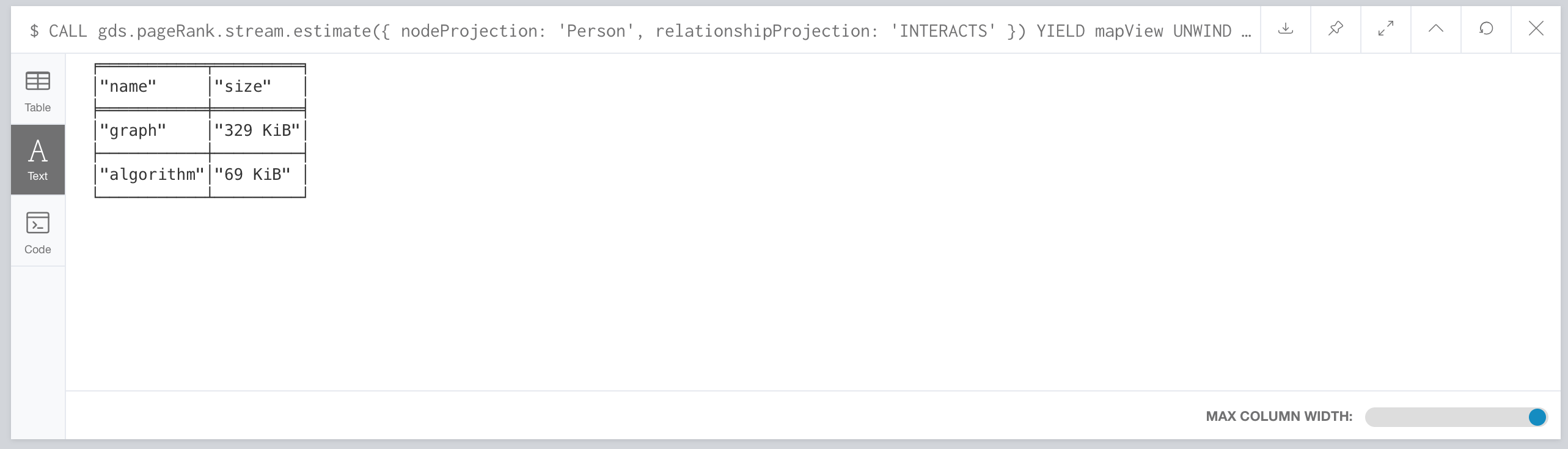

CALL gds.pageRank.stream.estimate({nodeProjection: 'Person', relationshipProjection: 'INTERACTS'})

Now, you can filter the result to the top level components: graph and algorithm.

CALL gds.pageRank.stream.estimate({
    nodeProjection: 'Person',
    relationshipProjection: 'INTERACTS'
}) YIELD mapView
UNWIND [ x IN mapView.components | [x.name, x.memoryUsage] ] AS component
RETURN component[0] AS name, component[1] AS size

Memory clean up

If you do not want to use the projected graph anymore, a good practice is to release it from the memory.

CALL gds.graph.drop('got-interactions');

1.3 Creating and preparing graphs for analytics

To enable fast caching of the graph topology containing only the relevant nodes, relationships and weights, it must reside as an in-memory projection of the stored graph. Projections change the nature of graph elements by:

• Sub-graphing
• Renaming relationship types and node labels
• Merging several relationship types and node labels
• Altering relationship direction
• Aggregating parallel relationships and their properties
• Deriving relationships from larger patterns

There are two ways of creating graph projections: explicit and implicit.

The workflow is to create a graph projection explicitly by naming it and storing it in the graph catalogue.

It is possible to create a graph about the Game of Thrones dataset considering that the INTERACTS relationships are symmetric. For instance, by creating a graph projection with UNDIRECTED orientation.

CALL gds.graph.create('got-interactions', 'Person', {
    INTERACTS: {
        orientation: 'UNDIRECTED'
    }
})

Cypher projection

Two queries must be run: one for the nodes and one for the relationships.

It is possible to remove parallel relationships between the pair of nodes adding an aggregation key for the property weight, in the reationshipProperties specification. The relationshipProperties configuration maps a returned property to property names used internally.

CALL gds.graph.create.cypher(
    'got-interactions-cypher',
    'MATCH (n:Person) RETURN id(n) AS id',
    'MATCH (s:Person)-[i:INTERACTS]->(t:Person) RETURN id(s) AS source, id(t) AS target, i.weight AS weight',
    {
        relationshipProperties: {
        weight: {
            property: 'weight',
            aggregation: 'SINGLE'
        }
    }
})

The first query returns the node ID’s. The second one returns de source and target IDs of the relationships. The aggregation key modifies the property values according to the specified aggregation. Here we see any pair of Cypher queries as they return the expected columns and field types.

To keep all relationships, use aggregation: 'NONE'.

To retain one of the relationships (arbitrary selected), use aggregation: 'SKIP'.

Cypher projection of virtual relationships

Cypher graph projections allow to represent complex patterns by computing relationships that do not exist in the Neo4J stored graph. This is useful when the data science algorithm supports only mono-partite graphs.

For example, you can use the following query to create a graph with Person nodes connected with (untyped) relationship if they belong to the same house. The projected relationship does not exist in the stored graph:

CALL gds.graph.create.cypher(
    'same-house-graph',
    'MATCH (n:Person) RETURN id(n) AS id',
    'MATCH (p1:Person)-[:BELONGS_TO]-(:House)-[:BELONGS_TO]-(p2:Person) RETURN id(p1) AS source, id(p2) AS target'
)

Standard loading and Cypher projection

Two approaches are supported for loading projected graphs:

• Standard creation ( gds.graph.create() )
• Cypher projection ( gds.graph.create.cypher() ).

Standard creation: specify node labels and relationship types and then project them onto the in-memory graph as labels and relationship types with new names. It is possible to specify properties for each node label and relationship type. It is not possible to take only some nodes with a given labels or some relationships with a given type. A way to work around is by adding additional labels that define the desired subset of nodes to project.

Cypher projection: Use Cypher queries to project nodes and relationships onto the in-memory graph by defining node-statements and relationship statements. The expressivity of Cypher is leveraged to specify the graph to analyse in a more sophisticated manner.

Note that the standard creation is orders of magnitude faster than the Cypher projection.

In the Game of Thrones example, we can project and load the graph with a new name, for example got-interactions-cypher.

1.3.2 Querying the Graph catalogue

Managing a projected graph with three main functions: listing, existence and remove.

Listing

CALL gds.graph.list('got-interactions-cypher')

You can list the graphs you have loaded so far.

CALL gds.graph.list()

Existence

Check if a graph exists in the catalogue.

CALL gds.graph.exists('got-interactions')

Remove

Free memory space by dropping graphs from the catalogue. It is good practice to remove the unused graphs from memory. Multiple users running algorithms at the same time is not supported.

CALL gds.graph.drop('got-interactions-cypher');

1.4 Getting started with algorithms

Algorithms in Neo4J can run on explicitly and implicitly created graphs. For this tutorial we will see some of the most prominent algorithms:

• Page Rank

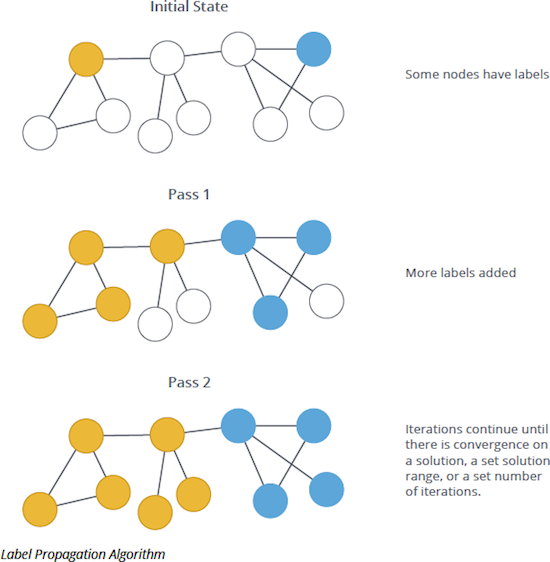

• Label propagation
• Weakly Connected Components
• Louvain
• Node similarity
• Shortest path

Running algorithms on explicitly created graphs allows to operate on a graph multiple time. To do this refer to the graph by its name, since it is stored in the graph catalogue as seen in the previous section. The syntax for applying algorithms on explicit graphs is the following:

CALL gds.<algo-name>.<mode>(
    graphName: String,
    configuration: Map
)

• <algo-name> is the algorithm name.
• <mode> is the algorithm execution mode. The supported modes are:
  • write: writes results to the Neo4j database and returns a summary of the results.
  • stats: same as write but does not write to the Neo4j database.
  • stream: streams results back to the user.

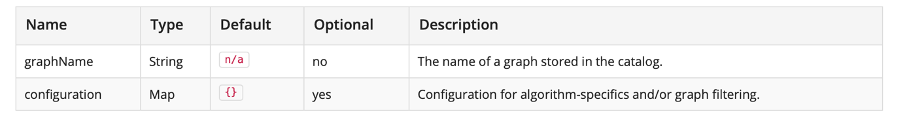

• The graphName parameter value is the name of the graph from the graph catalog.
• The configuration parameter value is the algorithm-specific configuration.

The syntax for applying algorithms on implicit graphs is the following. Note that it does not access the catalogue. So, the graph creation must be configured within the algorithm configuration map. Once the algorithm has been executed the graph is released from the memory.

CALL gds.<algo-name>.<mode>(
    configuration: Map
)

1.5 Page Ranking

Belongs to centrality operations, the objective is to identify influential nodes based on their position in the network.

The PageRank algorithm measures the importance of each node within the graph, based on the number incoming relationships and the importance of the corresponding source nodes. The underlying assumption, roughly speaking, is that a page is only as important as the pages that link to it. PageRank is introduced in the original Google paper as a function that solves the following equation :

where,

• we assume that a page A has pages T₁ to T_n which point to it.
• d is a damping factor which can be set between 0 and 1. It is usually set to 0.85.
• C(A) is defined as the number of links going out of page A.

This equation is used to iteratively update a candidate solution and arrive at an approximate solution to the same equation.

The original Google paper is here.

An efficient partition based parallel version is here.

For use cases see here.

1.5.1 Preparing a graph

The general expression to use the page rank function looks as follows:

CALL gds.pageRank.stream(
    graphName: String,
    configuration: Map
)
YIELD
    nodeId: Integer,
    score: Float

The results are not persistent.

To test it we can create a new graph example. This graph represents eight pages, linking to one another. Each relationship has a property called weight, which describes the importance of the relationship.

CREATE
(home:Page  {name:'Home'}),
(about:Page  {name:'About'}),
(product:Page  {name:'Product'}),
(links:Page  {name:'Links'}),
(a:Page  {name:'Site A'}),
(b:Page  {name:'Site B'}),
(c:Page  {name:'Site C'}),
(d:Page  {name:'Site D'}),
(home)-[:LINKS  {weight:  0.2}]->(about),
(home)-[:LINKS  {weight:  0.2}]->(links),
(home)-[:LINKS  {weight:  0.6}]->(product),
(about)-[:LINKS  {weight:  1.0}]->(home),
(product)-[:LINKS  {weight:  1.0}]->(home),
(a)-[:LINKS  {weight:  1.0}]->(home),
(b)-[:LINKS  {weight:  1.0}]->(home),
(c)-[:LINKS  {weight:  1.0}]->(home),
(d)-[:LINKS  {weight:  1.0}]->(home),
(links)-[:LINKS  {weight:  0.8}]->(home),
(links)-[:LINKS  {weight:  0.05}]->(a),
(links)-[:LINKS  {weight:  0.05}]->(b),
(links)-[:LINKS  {weight:  0.05}]->(c),
(links)-[:LINKS  {weight:  0.05}]->(d);

The following statement will create a graph using a native projection and store it in the graph catalog under the name myGraph.

CALL gds.graph.create(
    'myGraph',
    'Page',
    'LINKS',
    {
        relationshipProperties: 'weight'
    }
)

Memory Estimation

First off, we will estimate the cost of running the algorithm using the estimate procedure. This can be done with any execution mode. We will use the write mode in this example. Estimating the algorithm is useful to understand the memory impact that running the algorithm on your graph will have. When you later actually run the algorithm in one of the execution modes the system will perform an estimation. If the estimation shows that there is a very high probability of the execution going over its memory limitations, the execution is prohibited.

The following will estimate the memory requirements for running the algorithm:

CALL gds.pageRank.write.estimate('myGraph', {
    writeProperty: 'pageRank',
    maxIterations: 20,
    dampingFactor: 0.85
})
YIELD nodeCount, relationshipCount, bytesMin, bytesMax, requiredMemory

1.5.2 Stream mode

In the stream execution mode, the algorithm returns the score for each node. This allows us to inspect the results directly or post-process them in Cypher without any side effects. For example, we can order the results to find the nodes with the highest PageRank score. The above query is running the algorithm in stream mode as unweighted.

CALL gds.pageRank.stream('myGraph')
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC, name ASC

1.5.3 Mutate

The mutate updates the named graph with a new node property containing the score for that node. The name of the new property is specified using the mandatory configuration parameter mutateProperty. The result is a single summary row. The mutate mode is especially useful when multiple algorithms are used in conjunction. The following will run the algorithm in mutate mode.

CALL gds.pageRank.mutate('myGraph', {
    maxIterations: 20,
    dampingFactor: 0.85,
    mutateProperty: 'pagerank'
})
YIELD nodePropertiesWritten, ranIterations

1.5.4 Write

The write mode enables directly persisting the results to the database. Writes the score for each node as a property to the Neo4j database. The name of the new property is specified using the mandatory configuration parameter writeProperty.

CALL gds.pageRank.write('myGraph', {
    maxIterations: 20,
    dampingFactor: 0.85,
    writeProperty: 'pagerank'
})
YIELD nodePropertiesWritten, ranIterations

1.5.5 Weighted

By default, the algorithm is considering the relationships of the graph to be unweighted, to change this behaviour we can use configuration parameter called relationshipWeightProperty.

CALL gds.pageRank.stream('myGraph', {
    maxIterations: 20,
    dampingFactor: 0.85,
    relationshipWeightProperty: 'weight'
})
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC, name ASC

1.5.6 Tolerance

The tolerance configuration parameter denotes the minimum change in scores between iterations. If all scores change less than the configured tolerance value the result stabilises, and the algorithm returns. The following will run the algorithm in stream mode using bigger tolerance value:

CALL gds.pageRank.stream('myGraph', {
    maxIterations: 20,
    dampingFactor: 0.85,
    tolerance: 0.1
})
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC, name ASC

In this example we are using tolerance: 0.1, so the results are a bit different compared to the ones from stream example which is using the default value of tolerance. Note that the nodes ‘About’, ‘Link’ and ‘Product’ now have the same score, while with the default value of tolerance the node ‘Product’ has higher score than the other two.

1.5.7 Damping Factor

The damping factor configuration parameter accepts values between 0 and 1. If its value is too high then problems of sinks and spider traps may occur, and the values may oscillate so that the algorithm does not converge. If it’s too low then all scores are pushed towards 1, and the result will not sufficiently reflect the structure of the graph. The following will run the algorithm in stream mode using smaller dampingFactor value:

CALL gds.pageRank.stream('myGraph', {
    maxIterations: 20,
    dampingFactor: 0.05
})
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC, name ASC

Compared to the results from the stream example which is using the default value of dampingFactor the score values are closer to each other when using dampingFactor: 0.05. Also, note that the nodes ‘About’, ‘Link’ and ‘Product’ now have the same score, while with the default value of dampingFactor the node ‘Product’ has higher score than the other two.

1.5.8 Exercise

Then we can also use the Game of Thrones graph.

CALL gds.pageRank.stream('got-interactions') YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC LIMIT 10

Then you compare the Page Rank of each Person node with the number of interactions for that node. The result shows that not always the most talkative characters have the highest rank.

CALL gds.pageRanck.stream('got-interactions') YIELD nodeId, score AS pageRank
WITH gds.util.asNode(nodeId) AS n, pageRank
MATCH (n)-[i:INTERACTS]-()
RETURN n.name AS name, pageRank, count(i) AS interactions
ORDER BY pageRank DESC LIMIT 10

1.5.4.1 Rank per book

Along with the generic INTERACTS relationships, you also have INTERACTS_1, INTERACTS_2, etc., for the different books. Let us load a graph for the interactions of book 1 and compute and write the Page Rank scores.

CALL gds.graph.create(
    'got-interactions-1',
    'Person',
    {
        INTERACTS_1: {
            orientation: 'UNDIRECTED'
        }
    }
);

CALL gds.pageRank.write(
    'got-interactions-1',
    {
        writeProperty: 'pageRank-1'
    }
)

It is generally good idea to create the graph before executing an algorithm. If you will not operate on the graph later on, you can load it explicitly as part of the algorithm execution.

CALL gds.pageRank.write({
    nodeProjection: 'Person',
    relationshipProjection: {
        INTERACTS_1: {
            orientation: 'UNDIRECTED'
        }
    },
    writeProperty: 'pageRank-1'
})

1.5.4.1 Write mode

You can write the results of the Page Rank query on Neo4J and use them for further queries. You specify the name of the property to which the algorithm will write using writeProperty key in the config map passed to the procedure. Note that the writing is done in Neo4J and not in the graph got-interactions.

CALL gds.pageRank.write('got-interactions', {writeProperty: 'pageRank'})

1.5.4.2 Other tasks

Calculate the Page Rank of the other books in the series and store the results in the database.

• Write queries that call algo.pageRank for the INTERACT_2, INTERACTS_3, INTERACTS_4 and INTERACTS_5, relationship types. You can load a graph for each relationship type explicitly or use the shorthand.
• Which character has the biggest increase in influence from book 1 to 5?
• Which character has the biggest decrease?

Bonus task

• Use a Cypher projection to create a graph of Houses that fought in the same Battles and run Page Rank
• Does de result change if you weight Page Rank with the number of shared Battles?

1.5.4.3 Other tasks answer

Use a Cypher projection to create a graph of Houses that fought in the same Battles and run Page Rank

CALL gds.graph.create.cypher(
    'house-battles',
    'MATCH (h:House) RETURN id(h) AS id',
    'MATCH (h1:House)-->(b:Battle)<--(h2:House) RETURN id(h1) AS source, id(h2) AS target, count(b) AS weight',
    {
        relationshipProperties: 'weight'
    }
)

Does de result change if you weight Page Rank with the number of shared Battles?

CALL gds.pageRank.stream(
    'house-battles',
    {
        relationshipWeightProperty: 'weight'
    }
)
YIELD nodeId, score
RETURN gds.util.asNode(nodeId).name AS name, score
ORDER BY score DESC

1.6 Label Propagation: finding communities

Label propagation (LPA) finds communities in a graph. It propagates labels throughout the graph and forms communities of nodes based on their influence. It detects these communities using network structure alone as its guide. Thus, it does not require a pre-defined objective function or prior information about the communities.

LPA is an iterative algorithm. First it assigns a unique community label to each node. In each iteration the algorithm changes this label to the most common one among its neighbours. Densely connected nodes quickly broadcast their labels across the graph. At the end of the propagation, only few labels remain. Nodes that have the same community label at convergence are considered from the same community. The algorithm runs for a configuration maximum number of iterations or until it converges. (see further details in the Neo4J data science add-on documentation).

The intuition behind the algorithm is that a single label can quickly become dominant in a densely connected group of nodes, but will have trouble crossing a sparsely connected region. Labels will get trapped inside a densely connected group of nodes, and those nodes that end up with the same label when the algorithm finishes can be considered part of the same community.

The general lines of the algorithm are the following:

• Every node is initialized with a unique community label (an identifier).
• These labels propagate through the network.
• At every iteration of propagation, each node updates its label to the one that the maximum numbers of its neighbours belongs to. Ties are broken arbitrarily but deterministically.
• LPA reaches convergence when each node has the majority label of its neighbours.
• LPA stops if either convergence, or the user-defined maximum number of iterations is achieved.

As labels propagate, densely connected groups of nodes quickly reach a consensus on a unique label. At the end of the propagation only a few labels will remain - most will have disappeared. Nodes that have the same community label at convergence are said to belong to the same community.

One interesting feature of LPA is that nodes can be assigned preliminary labels to narrow down the range of solutions generated. This means that it can be used as semi-supervised way of finding communities where we hand-pick some initial communities.

More information of LPA are given here:

• “Near linear time algorithm to detect community structures in large-scale networks”

Interesting use cases can be found:

• Twitter polarity classification with label propagation over lexical links and the follower graph
• Label Propagation Prediction of Drug-Drug Interactions Based on Clinical Side Effects
• [“Feature Inference Based on Label Propagation on Wikidata Graph for DST”](

1.6.1 Syntax

1.6.1.1 Stream

The following will run the algorithm and stream back results:

Run Label Propagation in stream mode on a named graph.

CALL gds.labelPropagation.stream(
  graphName: String,
  configuration: Map
)
YIELD
    nodeId: Integer,
    communityId: Integer

Parameters

Algorithm general configuration

Algorithm specific configuraion

Results

1.6.1.2 Stats

Run Label Propagation in stats mode on a named graph.

CALL gds.labelPropagation.stats(
  graphName: String,
  configuration: Map
)
YIELD
  createMillis: Integer,
  computeMillis: Integer,
  postProcessingMillis: Integer,
  communityCount: Integer,
  ranIterations: Integer,
  didConverge: Boolean,
  communityDistribution: Map,
  configuration: Map

Parameters

General configuration

Algorithm specific configuration

Results

1.6.1.3 Mutate

Run Label Propagation in mutate mode on a named graph.

CALL gds.labelPropagation.mutate(
  graphName: String,
  configuration: Map
)
YIELD
  createMillis: Integer,
  computeMillis: Integer,
  writeMillis: Integer,
  postProcessingMillis: Integer,
  nodePropertiesWritten: Integer,
  communityCount: Integer,
  ranIterations: Integer,
  didConverge: Boolean,
  communityDistribution: Map,
  configuration: Map

Parameters

General configuration

Agorithm specific configuration

Results

1.6.1.4 Write

Run Label Propagation in write mode on a named graph.

CALL gds.labelPropagation.write(
  graphName: String,
  configuration: Map
)
YIELD
  createMillis: Integer,
  computeMillis: Integer,
  writeMillis: Integer,
  postProcessingMillis: Integer,
  nodePropertiesWritten: Integer,
  communityCount: Integer,
  ranIterations: Integer,
  didConverge: Boolean,
  communityDistribution: Map,
  configuration: Map

General parameters

General algorithm configuration on a named graph

Algorithm specific configuration

Results

1.6.1.5 Anonymous graphs

It is also possible to execute the algorithm on a graph that is projected in conjunction with the algorithm execution. In this case, the graph does not have a name, and we call it anonymous. When executing over an anonymous graph the configuration map contains a graph projection configuration as well as an algorithm configuration. All execution modes support execution on anonymous graphs, although we only show syntax and mode-specific configuration for the writemode for brevity.

Run Label propagation in write mode on an anonymous graph:

CALL gds.labelPropagation.write(
  configuration: Map
)
YIELD
  createMillis: Integer,
  computeMillis: Integer,
  writeMillis: Integer,
  postProcessingMillis: Integer,
  nodePropertiesWritten: Integer,
  communityCount: Integer,
  ranIterations: Integer,
  didConverge: Boolean,
  communityDistribution: Map,
  configuration: Map

General configuration of the algorithm on top of an anonymous graph

Algorithm specific configuration

1.6.2 Applying Label Propagation

In this section we will show examples of executing the Label Propagation algorithm on a concrete graph. The intention is to illustrate what the results look like and to provide a guide in how to make use of the algorithm in a real setting. We will do this on a small social network graph of a handful nodes connected in a particular pattern. The example graph looks like this:

The following Cypher statement will create the example graph in the Neo4j database:

CREATE
  (alice:User {name: 'Alice', seed_label: 52}),
  (bridget:User {name: 'Bridget', seed_label: 21}),
  (charles:User {name: 'Charles', seed_label: 43}),
  (doug:User {name: 'Doug', seed_label: 21}),
  (mark:User {name: 'Mark', seed_label: 19}),
  (michael:User {name: 'Michael', seed_label: 52}),

  (alice)-[:FOLLOW {weight: 1}]->(bridget),
  (alice)-[:FOLLOW {weight: 10}]->(charles),
  (mark)-[:FOLLOW {weight: 1}]->(doug),
  (bridget)-[:FOLLOW {weight: 1}]->(michael),
  (doug)-[:FOLLOW {weight: 1}]->(mark),
  (michael)-[:FOLLOW {weight: 1}]->(alice),
  (alice)-[:FOLLOW {weight: 1}]->(michael),
  (bridget)-[:FOLLOW {weight: 1}]->(alice),
  (michael)-[:FOLLOW {weight: 1}]->(bridget),
  (charles)-[:FOLLOW {weight: 1}]->(doug)

This graph represents six users, some of whom follow each other. Besides a name property, each user also has a seed_label property. The seed_label property represents a value in the graph used to seed the node with a label. For example, this can be a result from a previous run of the Label Propagation algorithm. In addition, each relationship has a weight property.

The following statement will create a graph using a native projection and store it in the graph catalog under the name ‘myGraph’.

CALL gds.graph.create(
    'myGraph',
    'User',
    'FOLLOW',
    {
        nodeProperties: 'seed_label',
        relationshipProperties: 'weight'
    }
)

In the following examples we will demonstrate using the Label Propagation algorithm on this graph.

Memory Estimation

First off, we will estimate the cost of running the algorithm using the estimate procedure. This can be done with any execution mode. We will use the write mode in this example. Estimating the algorithm is useful to understand the memory impact that running the algorithm on your graph will have. When you later actually run the algorithm in one of the execution modes the system will perform an estimation. If the estimation shows that there is a very high probability of the execution going over its memory limitations, the execution is prohibited.

The following will estimate the memory requirements for running the algorithm in write mode:

CALL gds.labelPropagation.write.estimate('myGraph', { writeProperty: 'community' })
YIELD nodeCount, relationshipCount, bytesMin, bytesMax, requiredMemory

Results

Stream

In the stream execution mode, the algorithm returns the community ID for each node. This allows us to inspect the results directly or post-process them in Cypher without any side effects. For example, we can order the results to see the nodes that belong to the same communities displayed next to each other.

The following will run the algorithm and stream results:

CALL gds.labelPropagation.stream('myGraph')
YIELD nodeId, communityId AS Community
RETURN gds.util.asNode(nodeId).name AS Name, Community
ORDER BY Community, Name

Results

In the above example we can see that our graph has two communities each containing three nodes. The default behaviour of the algorithm is to run unweighted, e.g. without using node or relationship weights. The weightedoption will be demonstrated later.

Stats

In the stats execution mode, the algorithm returns a single row containing a summary of the algorithm result. In particular, Betweenness Centrality returns the minimum, maximum and sum of all centrality scores. This execution mode does not have any side effects. It can be useful for evaluating algorithm performance by inspecting the computeMillisreturn item. In the examples below we will omit returning the timings.

The following will run the algorithm in stats mode:

CALL gds.labelPropagation.stats('myGraph')
YIELD communityCount, ranIterations, didConverge

Results

As we can see from the example above the algorithm finds two communities and converges in three iterations. Note that we ran the algorithm unweighted.

Mutate

The mutate execution mode extends the stats mode with an important side effect: updating the named graph with a new node property containing the community ID for that node. The name of the new property is specified using the mandatory configuration parameter mutateProperty. The result is a single summary row, similar to stats, but with some additional metrics. The mutate mode is especially useful when multiple algorithms are used in conjunction.

The following will run the algorithm and write back results:

CALL gds.labelPropagation.mutate('myGraph', { mutateProperty: 'community' })
YIELD communityCount, ranIterations, didConverge

Results

The returned result is the same as in the stats example. Additionally, the graph ‘myGraph’ now has a node property community which stores the community ID for each node.

Write

The write execution mode extends the stats mode with an important side effect: writing the community ID for each node as a property to the Neo4j database. The name of the new property is specified using the mandatory configuration parameter writeProperty. The result is a single summary row, similar to stats, but with some additional metrics. The write mode enables directly persisting the results to the database.

The following will run the algorithm and write back results:

CALL gds.labelPropagation.write('myGraph', { writeProperty: 'community' })
YIELD communityCount, ranIterations, didConverge

Results

The returned result is the same as in the stats example. Additionally, each of the six nodes now has a new property community in the Neo4j database, containing the community ID for that node.

Weighted

The Label Propagation algorithm can also be configured to use node and/or relationship weights into account. By specifying a node weight via the nodeWeightProperty key, we can control the influence of a nodes community onto its neighbors. During the computation of the weight of a specific community, the node property will be multiplied by the weight of that nodes relationships.

When we created myGraph, we projected the relationship property weight. In order to tell the algorithm to consider this property as a relationship weight, we have to set the relationshipWeightProperty configuration parameter to weight.

The following will run the algorithm on a graph with weighted relationships and stream results:

CALL gds.labelPropagation.stream('myGraph', { relationshipWeightProperty: 'weight' })
YIELD nodeId, communityId AS Community
RETURN gds.util.asNode(nodeId).name AS Name, Community
ORDER BY Community, Name

Results

Compared to the unweighted run of the algorithm we still have two communities, but they contain two and four nodes respectively. Using the weighted relationships, the nodes Alice and Charles are now in the same community as there is a strong link between them.

Seeded communities

At the beginning of the algorithm computation, every node is initialized with a unique label, and the labels propagate through the network.

An initial set of labels can be provided by setting the seedProperty configuration parameter. When we created myGraph, we projected the node property seed_label. We can use this node property as seedProperty.

The algorithm first checks if there is a seed label assigned to the node. If no seed label is present, the algorithm assigns new unique label to the node. Using this preliminary set of labels, it then sequentially updates each node’s label to a new one, which is the most frequent label among its neighbors at every iteration of label propagation.

The following will run the algorithm with pre-defined labels:

CALL gds.labelPropagation.stream('myGraph', { seedProperty: 'seed_label' })
YIELD nodeId, communityId AS Community
RETURN gds.util.asNode(nodeId).name AS Name, Community
ORDER BY Community, Name

Results

As we can see, the communities are based on the seed_label property, concretely 19 is from the node Mark and 21from Doug.

We have used the stream mode to demonstrate running the algorithm using seedProperty, this configuration parameter is available for all the modes of the algorithm.

1.6.3 Exercise

Let us use Label Propagation to find the five largest communities of people interacting with each other. For flexibility, in this example you can create a graph directly in the algorithm call.

The weight property on the relationship represents the number of interactions between two people. In LPA, the weight is used to determine the influence of neighbouring nodes when voting on community assignment.

CALL gds.graph.create(
    'got-interactions-weighted',
    'Person',
    {
        INTERACTS: {
            orientation: 'UNDIRECTED',
            properties: 'weight'
        }
    }
)

Here a way of applying LPA with just one iteration.

CALL gds.labelPropagation.stream(
    'got-interactions-weighted',
    {
        relationshipWeightProperty: 'weight',
        maxIterations: 1
    }
) YIELD nodeId, communityId
RETURN communityId, count(nodeId) AS size
ORDER BY size DESC
LIMIT 5

Note that the nodes are assigned to initial communities – 2166 nodes to 1476 communities. However, the algorithm needs multiple iterations to achieve a stable result. So, run the same procedure with two iterations and see how results change.

CALL gds.labelPropagation.stream(
    'got-interactions-weighted',
    {
        relationshipWeightProperty: 'weight',
        maxIterations: 2
    }
) YIELD nodeId, communityId
RETURN communityId, count(nodeId) AS size
ORDER BY size DESC
LIMIT 5

Usually, label propagation requires more than a few iterations to coverage on a stable result. The number of required iterations depends on the graph structure. This calls for experimentation.

1.6.3.1 Seeding

Label propagation can be seeded with an initial community label from a pre-existing node property. This allows you to compute communities incrementally. Let us write the results after the first iteration back to the source graph, under the write property name community.

CALL gds.labelPropagation.write(
    'got-interactions-weighted',
    {
        relationshipWeightProperty: 'weight',
        maxIterations: 1,
        writeProperty: 'community'
    }
)

You can now use the community property as a seed property for the second iteration. The results should be the same as the previous run with two iterations. Seeding is particularly useful when the source graph grows and you want to compute communities incrementally, without starting again from scratch. Since got-interactions-weighted does not contain the community property you must create a new graph that does.

CALL gds.graph.create(
    'got-interactions-seeded',
    {
        Person: {
            properties: 'community'
        }
    },
    {
        INTERACTS: {
            orientation: 'UNDIRECTED',
            properties: 'weight'
        }
    }
)

Then, you can use the seed configuration key to specify the property from which you want to seed the community IDs.

CALL gds.labelPropagation.stream(
    'got-interactions-seeded',
    {
        relationshipWeightProperty: 'weight',
        maxIterations: 1,
        seedProperty: 'community'
    }
) YIELD nodeId, communityId
RETURN communityId, count(nodeId) AS size
ORDER BY size DESC
LIMIT 5

1.6.3.2 Exercise bonus

• How many interactions does it take for LPA to converge on a stable number of communities? How many communities do you end up with?
• What happens when you run LPA for 1,000 maxIterations? (hint: try using YIELD ranIterations)
• What happens if you run LPA without weights? Do you find the same communities?
• Bonus task: What if you use house affiliations as seeds for communities? How would you use Cypher to create the initial seeds? Run the algorithm with the new seeds. Do you find a different set of communities?

1.6.3.3 Cleanup

Once done with the LPA, remove the graphs from the catalogue.

CALL gds.graph.drop('got-interactions-weighted');

CALL gds.graph.drop('got-interactions-seeded');
